Full-sheet CNC platform built for accuracy, reliability, and real materials.
A rigid, all-aluminum CNC router designed to cut full sheets of wood, plastics, and aluminum with consistent accuracy across the entire work area.
Full 4×8 cutting area
All-aluminum frame with industrial motion components
Suitable for education, workshops, and small production environments
Designed for long-term ownership and serviceability
Full-sheet CNC platform built for accuracy, reliability, and real materials.
1.5 kW Spindle (Included)
110V spindle suitable for wood, plastics, and light aluminum work. Features an ER11 collet, accepting tooling with up to a 1/4″ shank.
2.2 kW Spindle (+$150)
220V spindle with increased cutting power for heavier workloads. Features an ER20 collet, accepting tooling with up to a 1/2″ shank.
Dust Shoe (+$149)
Helps capture chips and debris during cutting.
+$149
+$349
+$149
+$1,995
+$449
+$699
+$299
*’Desktop’ products have max cut area of 24″x24″ Learn More
Ships via UPS • Support included • Configurable options
$5,999.00
Interlocking alignment features guide every structural component into place, giving you a rigid, square frame with minimal adjustment. Set up faster, break down cleaner, and get repeatable results every time.
A precision ball screw drives smooth, backlash-free vertical motion — holding position under load for accurate depth control, cleaner cuts, and better finishes on detailed toolpaths.

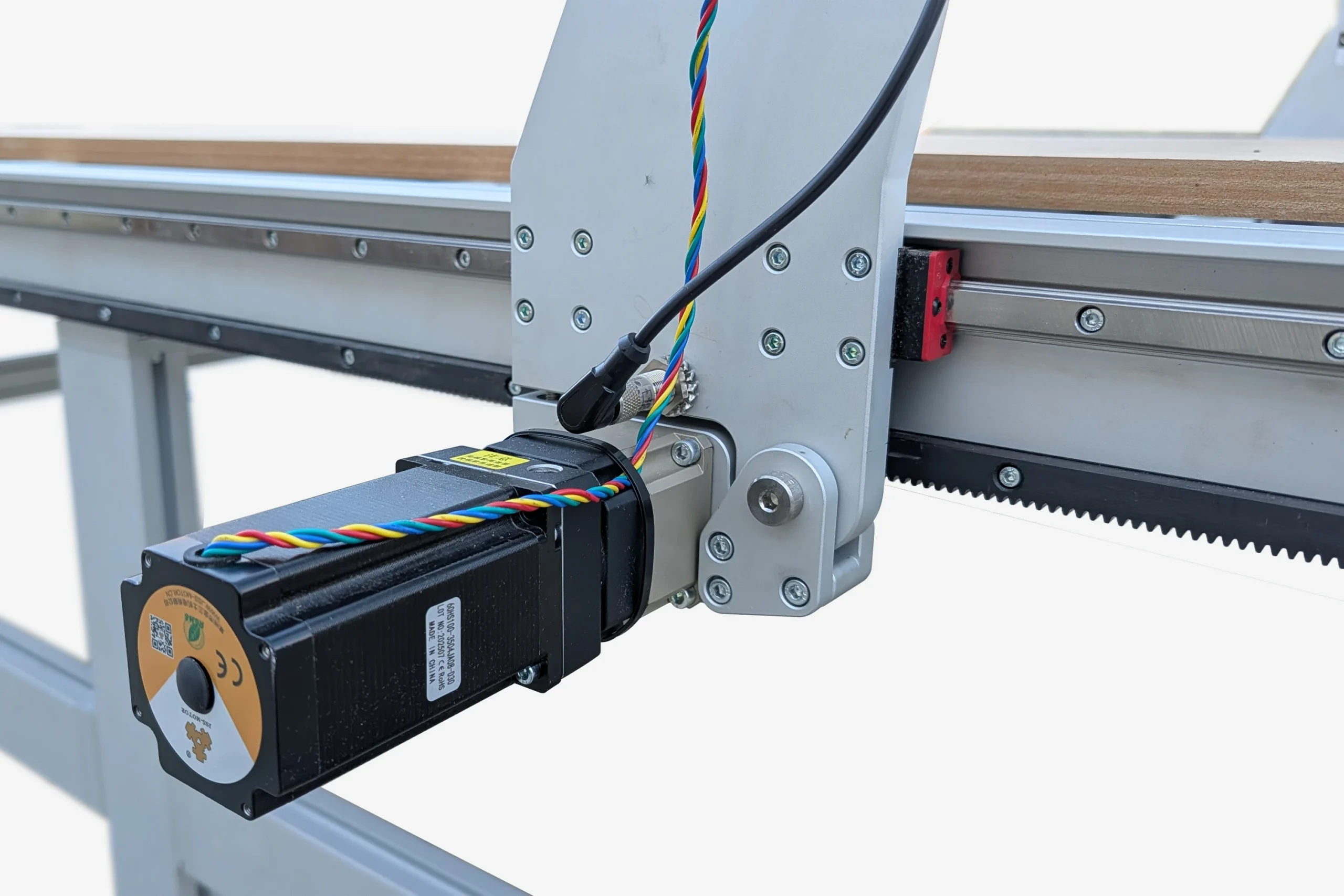

Rack and pinion drive delivers efficient power and consistent motion across long travel distances. Properly matched motors and components keep the machine responsive under load, hour after hour.

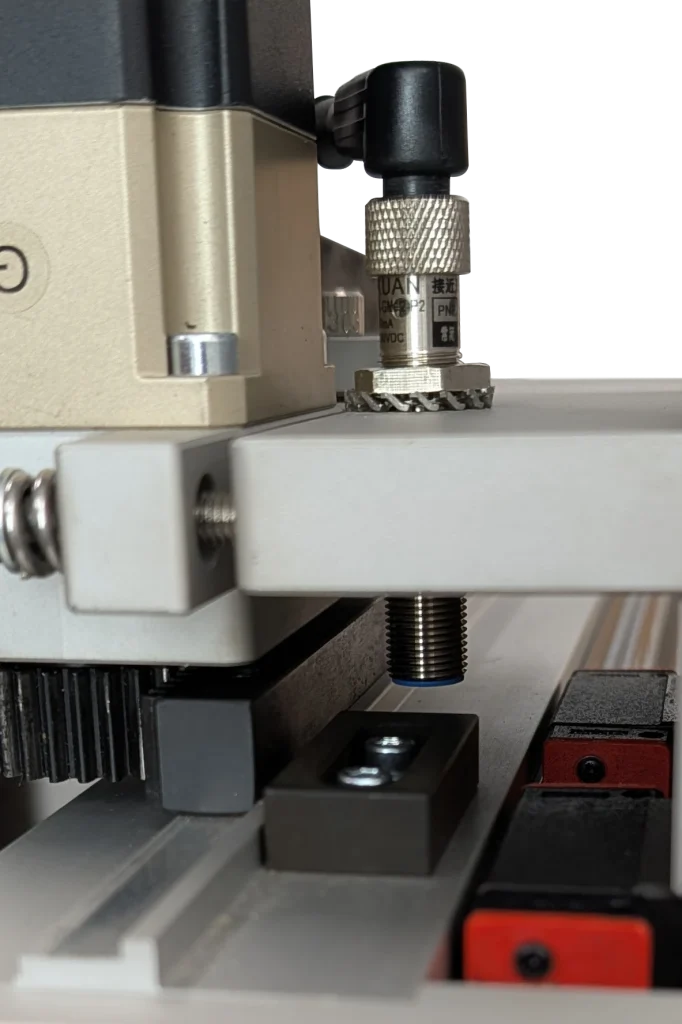

Non-contact homing that shrugs off dust, chips, and vibration — for accurate, repeatable positioning without the wear of mechanical limit switches.
The Zenbot Pro Series bridges the gap between hobby CNC routers and full industrial machines—offering full-sheet capability, rigid construction, and serviceable components without the cost or complexity of industrial automation.
Hardwood
Furniture parts, joinery
Plywood & MDF
Cabinet components
Plastics
HDPE, acrylic, signage, and more
Aluminum
Plates, brackets
Composites
Fixtures, specialty work
Foam
Packaging, prototyping, boat decking
Laminates
Panels, overlays, ACM
Soft Metals
Aluminum, brass
Sheet Goods
Full 4×8 processing
Custom Materials
Just ask us
The Zenbot Pro Series is built to deliver predictable results across the entire cutting area — not just near the center of the table. Frame rigidity, motion components, and drive systems work together to support consistent positioning and repeatability for real shop workflows.
Repeatability — returns to the same position consistently
±0.002 in
Repeatability — returns to the same position consistently
±0.002 in
Captures chips and dust directly at the cutting point.
The brush skirt surrounds the spindle to contain debris while cutting, helping maintain a cleaner workspace, improving cut visibility, and reducing cleanup after machining.
Reliable power for most CNC routing applications
Specs
Higher torque and larger tooling capability for heavier cutting
Specs
Powerful Design & Toolpath Software from Vectric
Cut2D is designed for 2D CNC operations such as profiling, pocketing, drilling, and simple engraving. It offers a clean, efficient workflow for producing flat parts, panels, and signs with reliable, predictable toolpaths.
Cut2D is a strong choice for users focused on straightforward 2D machining without advanced production or 3D features.
Cut2D Desktop includes all core 2D design and machining tools, but limits the maximum work area to 24" × 24". This version is best suited for smaller CNC machines or compact projects.
Cut2D Pro removes all work area limits and unlocks production features such as nesting, toolpath templates, gadgets, and keep-out zones. For Zenbot Pro Series 4×8 machines, Cut2D Pro is required to use the full cutting area without tiling.
VCarve expands on Cut2D by adding powerful 2.5D design tools and industry-leading V-carving functionality. It is the most popular software choice for CNC routing applications such as sign making, cabinetry, furniture, and decorative work.
VCarve balances creative flexibility with efficient production-ready toolpaths, making it well suited for both one-off projects and repeat workflows.
VCarve Desktop includes the full VCarve design and toolpath feature set, but limits the maximum work area to 24" × 24". It is intended for smaller CNC machines and smaller-format projects.
VCarve Pro removes work area limits and unlocks advanced production features such as true shape nesting, toolpath templates, gadgets, job setup sheets, keep-out zones, and array toolpaths. For Zenbot Pro Series 4×8 machines, VCarve Pro is the recommended option.
PhotoVCarve converts photographs and images into CNC-ready toolpaths using grayscale carving techniques. This allows detailed photographic engravings to be machined directly into wood, plastics, and other materials.
PhotoVCarve is commonly used for portraits, plaques, artwork, and personalized projects. It integrates seamlessly alongside other Vectric software in a Zenbot workflow.
Cut3D is designed for machining 3D reliefs from existing STL and 3D model files. It focuses on generating efficient 3-axis CNC toolpaths from pre-modeled parts without requiring advanced CAD modeling.
Cut3D is ideal for relief carvings, contoured signs, molds, and decorative 3D components when paired with external 3D models.
Aspire is Vectric’s most advanced CAD/CAM software, combining all VCarve Pro functionality with full 3D modeling, sculpting, and relief creation tools. It allows users to design and machine complex 3D parts entirely within one environment.
Aspire is designed for advanced users and production environments that require custom 3D designs, multi-layer reliefs, rotary machining, and unrestricted machine size.
Everything required to build and operate the CNC machine itself.
CNC machine frame
Complete motion system (rails, drives, motors)
Controller and electronics
Selected spindle (1.5 kW included; 2.2 kW available as upgrade)
UCCNC Control software License and Configuration
Items required for installation, operation, and daily use.
Power:
Dedicated circuit for the spindle
(10–15 amp, depending on option)
Control computer:
PC meeting UCCNC system requirements
CAD/CAM software:
Vectric, Fusion, or equivalent
Shop space:
Adequate clearance for the machine footprint
Basic assembly tools:
Common hand tools for mechanical assembly
| Category | Group | Item | Specification |
|---|---|---|---|
| Machine | General | Machine Type | Gantry-style CNC Router |
| Primary Application | Full-sheet cutting and machining | ||
| Supported Materials | Wood, plastics, non-ferrous metals | ||
| Control Software | UCCNC (configuration file included) | ||
| Body | Structure | Frame Construction | Custom aluminum extrusions with precision machined gantry beam mounting surfaces |
| Assembly | Patent-pending quick connection system for fast assembly | ||
| Footprint | 108 × 71 × 52 in | ||
| Table & Work Area | Machine Travel | 100 × 50 × 7 in | |
| Table Height | 31 in | ||
| Gantry Clearance | 6 in | ||
| Spoilboard | User-installed (file provided) | ||
| Motion System | Linear Motion | Linear Guides | Profile linear guide rails |
| Sensors | Inductive proximity sensors on all axes | ||
| Drive System | X / Y Axis Drive | Rack and pinion with helical planetary gearboxes | |
| Z Axis Drive | Precision ball screw | ||
| Motors | X / Y Motors | NEMA 24 stepper motors | |
| Z Motor | NEMA 23 stepper motor | ||
| Power | Requirements | Machine Control | 110V 3A |
| 1.5 kW Spindle | 110V 15A | ||
| 2.2 kW Spindle | 220V 10A | ||
| Vacuum Pump | 110V 15A | ||
| Shipping & Warranty | Support | Warranty | Full one-year warranty on all components |
| Return Policy | 30-day return (full refund minus shipping) | ||
| Shipping | Ships via UPS in multiple packages that fit through a standard door |
